Few items get quoted as often in industrial supply as a 2.2 kW four-pole motor, so the 2026 price question comes up constantly. The retail band and the technical detail behind it are set out below.

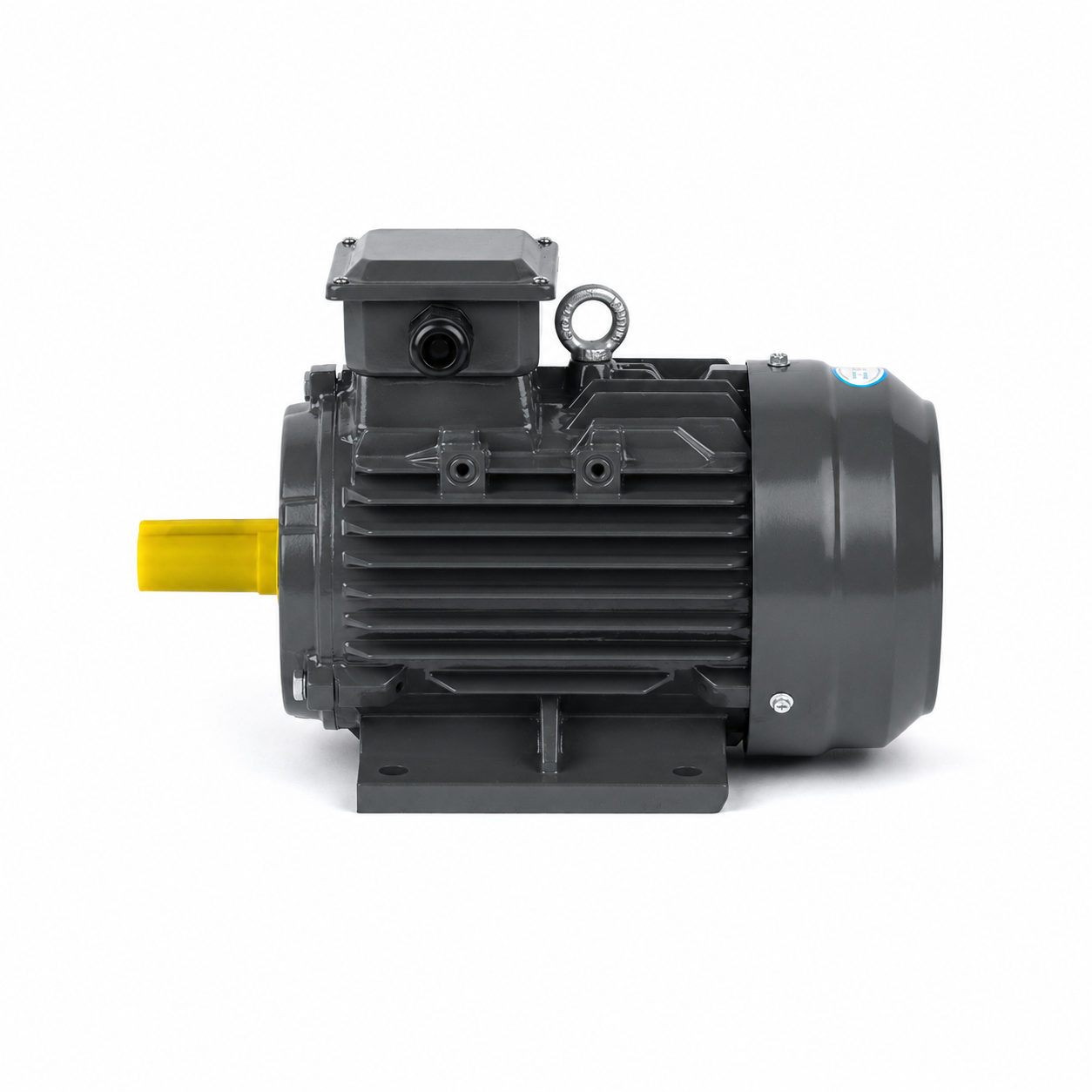

The 2.2 kW 1500 rpm Motor in Short

At roughly 3 HP, this is a four-pole three-phase asynchronous machine. Gearboxes, mixers, pumps, fans, conveyors, packaging lines and plenty of other general industrial equipment carry one. Buyers at this rating look for the 100 percent copper winding, a durable frame and long service life, while B3 foot, B5 flange and B35 foot-and-flange versions adapt it to different machines.

2026 Price Band

Brand, efficiency class, mounting arrangement, frame construction and order volume all move the 2026 price. Retail pricing for a 2.2 kW 1500 rpm IE3 three-phase motor generally falls between 8,900 TL and 11,000 TL plus VAT. Volume orders from machine builders, dealers, resellers and industrial buyers get different pricing; that channel runs from 5,700 TL to 9,000 TL. The gap is a quantity and stock question, not a specification question.

IE3 2.2 kW Data at a Glance

  • Rated power: 2.2 kW
  • Horsepower: about 3 HP
  • Synchronous speed: 1500 rpm
  • Actual running speed: approximately 1440 to 1450 rpm
  • Poles: 4
  • Voltage: 380 to 400 V three phase
  • Frequency: 50 Hz
  • Efficiency class: IE3 or IE4
  • Protection: IP55
  • Insulation: class F
  • Duty: S1
  • Winding: 100 percent copper
  • Mounting: B3, B5, B35, B14 and B34

The label says 1500 rpm; slip means the shaft actually turns at around 1440 to 1450 rpm under load.

What Current Does It Pull

On a 400 V supply at full load, a 2.2 kW 1500 rpm three-phase motor typically draws about 4.5 to 5 A. Efficiency class and manufacturing detail shift the exact figure, so set motor protection switch and thermal relay from the nameplate in front of you, never from a table.

Where It Is Used

  • Radial, scroll and centrifugal fan units
  • Booster sets and centrifugal pumps
  • Roller and belt conveyors
  • Screw conveying equipment
  • Gear-driven machinery
  • Agitators and mixers
  • Packaging lines
  • Grain and feed machinery
  • Plastics recycling plant
  • Metalworking equipment
  • Washing and drying systems in industry

Reading the B3, B5 and B35 Codes

Bolted through its feet onto a flat base, a B3 motor is common on fans, conveyors, mixers and belt-and-pulley drives. The front flange of a B5 motor bolts straight to the pump or machine it drives. B35 combines feet with a flange and is preferred when the joint must be more rigid. Confirm shaft diameter, flange size and mounting arrangement before placing the order.

What IE3 Changes

Compared with a standard machine, an IE3 unit wastes less energy and runs cooler. The practical results:

  • Reduced energy consumption
  • Cooler running
  • Fitness for nonstop duty
  • More stable operation
  • Longer life from winding and insulation
  • Reduced operating cost

Using It with an Inverter

Paired with an appropriate frequency inverter, these motors gain speed adjustment, a soft start and reduced mechanical shock. Held for long spells well below 1500 rpm, a 2.2 kW frame moves too little air over itself and wants forced ventilation on its own supply. Inverter sizing follows the driven machine's load together with the motor's rated current.

For a firm figure instead of a band, name the driven machine, the mounting arrangement and the order quantity; those three answers decide which end of the price range applies.
