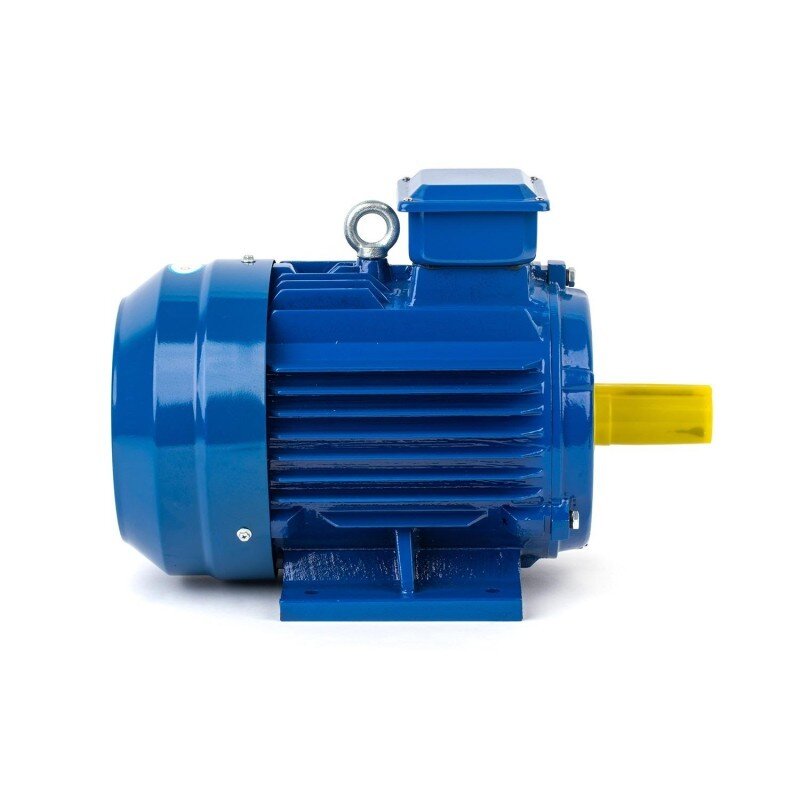

Low-kW AC electric motors are the core drive for applications that need limited power: small machine tools, sampling pumps, mini conveyors and laboratory equipment. Even at low power, a motor's steady running, low vibration and long life determine the quality of the work. DRG Motor builds low-kW asynchronous motors starting from 0.55 kW for small and medium-scale applications.

Typical Applications in the Low-kW Range

Motors between 0.55 kW and 7.5 kW are common in small pumps, blowers, mixers, packaging machines and workshop benches. Because these applications usually run at a single station, compact size and easy mounting matter.

Speed and Mounting Options

Low-power motors are offered as 2-pole 3000 rpm for fast applications, 4-pole 1500 rpm for general use, and 6-pole 1000 rpm where low speed is required. With B3 foot, B5 flange and B14 face mountings they bolt directly onto small machines.

Lightweight Frame and Protection

In this power class an aluminium frame is preferred: it is light, dissipates heat well and is easy to handle. IP55 protection suits dusty environments and Class F insulation gives a temperature margin fit for continuous duty. A three-phase 400 V / 50 Hz supply is standard.

The Right Motor for Your Small Application

Even in a low-kW motor, the right pole and frame choice makes a difference to efficiency and life. From its İzmir-based supply, DRG Motor supplies IE3 class low-kW AC motors; we can define together the power suited to your small-scale machine.
