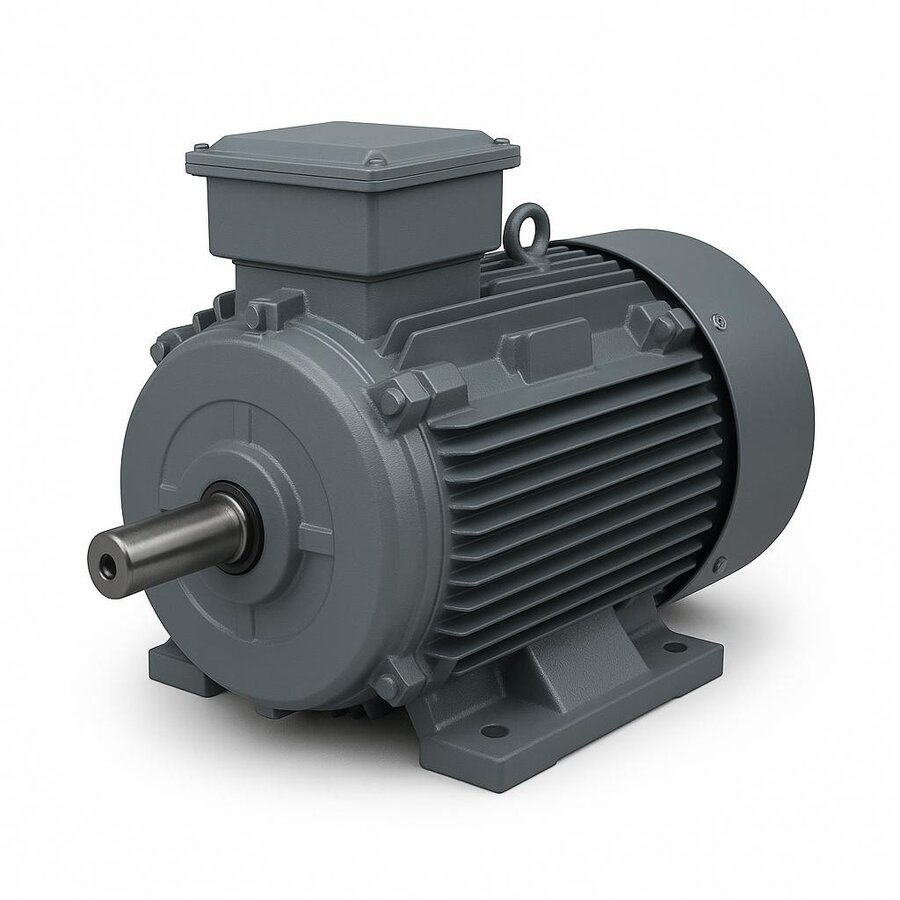

15 kW 3000 RPM ELECTRIC MOTOR

CONTACT: +90 542 666 11 11

The 15 kW 3000 RPM electric motor designed and manufactured by DRG Motor is a durable and high-performance solution for high-speed industrial applications. Its compact and robust design makes it a reliable choice for pumps, fans, compressors, conveyors, machine tools, and automation systems.

With an approximate power of 20 HP, this motor provides continuous and stable operation at 3000 revolutions per minute. Low vibration and quiet operation improve efficiency and user comfort.

Housing material options:

  • Aluminum – lightweight and corrosion-resistant

  • Cast iron – durable and long-lasting

Standard IP55 protection rating, with IP65 option available for harsher conditions.

Technical Features:

  • High-purity copper windings for excellent conductivity

  • Class F insulation for high temperature resistance

  • Dynamically balanced rotor for low noise and vibration

  • Sealed bearings for long life and low maintenance

The motor complies with IE2 efficiency class standards; IE3 high-efficiency options are available upon request.

Mounting Options:

  • B3 (foot-mounted)

  • B5 (flange-mounted)

  • B14 (small flange-mounted)

Shaft diameter, flange dimensions, and terminal box location can be customized. Fully compatible with Variable Frequency Drives (VFDs).

Optional Accessories:

  • PTC thermistors / PT100 temperature sensors

  • Encoders for speed and position feedback

  • Electromagnetic brakes

  • Automatic lubrication systems

Modular design allows easy installation and maintenance.

In conclusion, the 15 kW 3000 RPM electric motor from DRG Motor is an ideal choice for those seeking durability, performance, and energy efficiency.

You can purchase this motor and all other models from DRG Motor.
