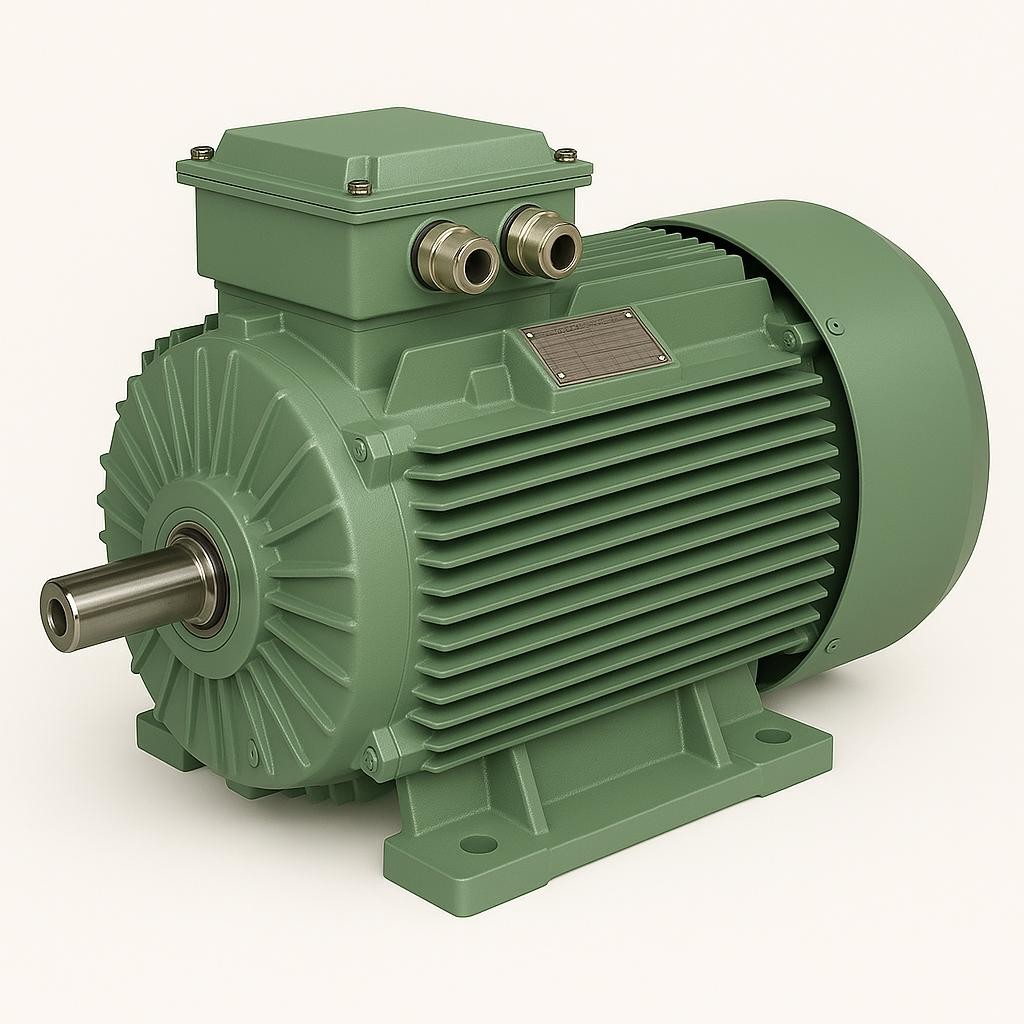

DRG Pump Motors
DRG pump motors are designed for water supply, pressurisation, fire safety and industrial processes, built to low vibration, minimum noise and high energy efficiency criteria for uninterrupted, reliable operation. They cover 0.25 – 355 kW in IE3 / IE4 classes, suit horizontal and vertical pump applications, and ship from stock.
General Technical Specifications
| Feature | Value / Description |
|---|---|
| Power range | 0.25 – 355 kW |
| Efficiency class | IE3 / IE4 |
| Poles / Speed | 2 / 4 / 6 poles – 3000 / 1500 / 1000 rpm |
| Winding | 100% pure copper |
| Insulation | Class F (optional H) |
| Protection | IP55 |
| Mounting types | B3, B5, B14 (horizontal / vertical) |
| Vibration | ISO 10816 / ISO 20816 – balance G2.5 / G6.3 |
Low Vibration – Pump and System Protection
In pump applications, vibration from mechanical oscillation, coupling misalignment and hydraulic imbalance can cause serious failures. DRG pump motors minimise these risks:
- Low vibration levels per ISO 10816 / ISO 20816
- Precise dynamic rotor balance (G2.5 / G6.3)
- CNC-machined shaft and bearing seats for high alignment accuracy
- Rigid cast body for resonance and vibration damping
- Low axial and radial deviation
This extends bearing life, reduces maintenance and protects pump equipment.
Minimum Noise – Acoustic Stability
At pump stations, noise is critical for operator comfort and the environment. DRG motors minimise noise:
- Stator design optimised to reduce magnetic noise
- Harmonic-reducing slot / pole geometry
- High-quality bearings reducing mechanical noise
- Acoustic stability from low vibration
High Efficiency – Energy Savings
Pump systems often run 24 hours a day, so energy consumption is critical.
- IE3 and IE4 high-efficiency class
- 100% copper winding technology
- Optimised magnetic circuit
- Low losses and low temperature rise → lower operating cost
Heavy-Duty Design
- IP55 protection class (dust and water resistant)
- Class F insulation (optional Class H)
- Suitable for humid and demanding environments
Wide Range and Compatibility
- 0.25 kW – 355 kW power range
- 2 / 4 / 6 pole options
- B3, B5, B14 mounting types
- Suitable for horizontal and vertical pump applications
- Fast delivery from stock
Applications
- Water pumps
- Fire pumps
- Booster systems
- Wastewater and drainage pumps
- Industrial process pumps
- Agricultural irrigation systems
Delivery, Warranty and After-Sales
Standard ratings ship from stock. All products carry a 2-year warranty, backed by nationwide service and spare-part support.
Request a Quote
Get a price for the power, speed and mounting that fit your pump system:
Quick quote on WhatsApp | +90 542 666 11 11 | Contact & Quote Form
For details on pump, fan and blower motors, see our pump / fan motors content.
DRG motors to consider for this application
Suitability is not decided by power alone: compare the speed, voltage, mounting, shaft and fixing dimensions of your machine with the product data; if unsure, send us the nameplate of your current motor.
1.1 kW Three-Phase Motor 3000 rpm – DRG-802-2 Aluminium
- 1.1 kW · 3000 rpm (2 poles)
- Aluminium frame · IEC 80
- Mounting: B3 · B5 · B14 · B35
3 kW Compact Three-Phase Motor 3000 rpm – DRG-90L-2K Cast Iron
- 3 kW · 3000 rpm (2 poles)
- Cast iron frame · IEC 90L
- Mounting: B3 · B5 · B14 · B35
15 kW Three-Phase Motor 3000 rpm – DRG-160M2-2 Cast Iron
- 15 kW · 3000 rpm (2 poles)
- Cast iron frame · IEC 160M
- Mounting: B3 · B5 · B14 · B35
30 kW Three-Phase Motor 3000 rpm – DRG-200L1-2 Cast Iron
- 30 kW · 3000 rpm (2 poles)
- Cast iron frame · IEC 200L
- Mounting: B3 · B5 · B14 · B35
75 kW Three-Phase Motor 3000 rpm – DRG-280S-2 Cast Iron
- 75 kW · 3000 rpm (2 poles)
- Cast iron frame · IEC 280S
- Mounting: B3 · B5 · B14 · B35
132 kW Three-Phase Motor 3000 rpm – DRG-315M-2 Cast Iron
- 132 kW · 3000 rpm (2 poles)
- Cast iron frame · IEC 315M
- Mounting: B3 · B5 · B14 · B35
Other suitable models: DRG-315L1-2 (160 kW · 3000 rpm), DRG-315L-2 (185 kW · 3000 rpm), DRG-315L2-2 (200 kW · 3000 rpm), DRG-355M-2 (250 kW · 3000 rpm), DRG-355L-2 (315 kW · 3000 rpm), DRG-400M-2 (355 kW · 3000 rpm)
