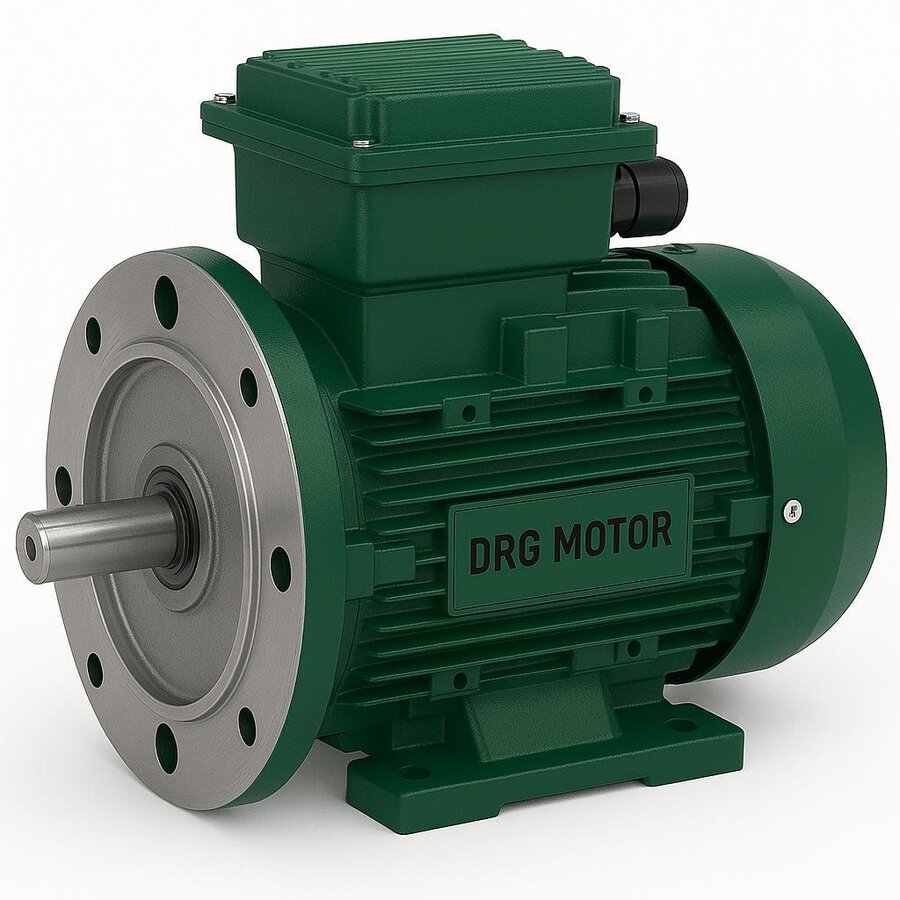

An IE3 motor is an asynchronous electric motor that meets the "Premium Efficiency" class of the IEC 60034-30-1 standard. Mandated in many countries as the minimum efficiency for certain power ranges, IE3 does the same work with fewer losses than IE1 and IE2 motors and so lowers operating cost.

What the IE3 Class Means

IEC 60034-30-1 defines the efficiency classes as IE1 (Standard), IE2 (High), IE3 (Premium), IE4 (Super Premium) and IE5 (Ultra Premium). IE3 must meet a minimum efficiency curve set for each power and pole rating; a motor carrying the IE3 label means its loss at that point is capped by the standard.

The Design That Makes IE3 Possible

Reaching IE3 efficiency relies on windings with more copper, optimised stator and rotor slot geometry and low-loss silicon steel. These reduce both the copper (load) and iron (magnetising) losses, so the motor delivers the same shaft power with less electricity and runs at a lower temperature.

Speed and Operating Conditions

IE3 motors come in 2-, 4- and 6-pole options (3000/1500/1000 rpm) on a 50 Hz supply and usually feature a cast iron housing, IP55 protection, Class F insulation and S1 continuous duty. To make full use of the efficiency advantage, the motor should be sized correctly for the application and not oversized.

When IE3 Is the Right Choice

On pump, fan and compressor lines that run long hours, IE3 recovers its price difference through energy savings. DRG Motor supplies IE3 motors from 0.55 to 355 kW from its İzmir manufacturing base; share your application and we will settle on the right power and pole count together.
