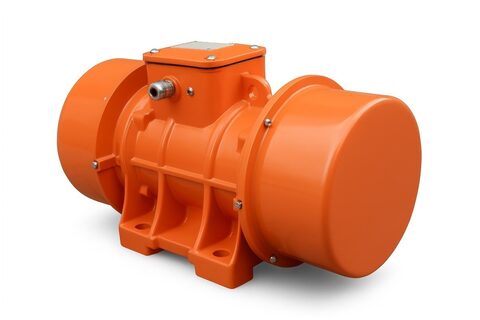

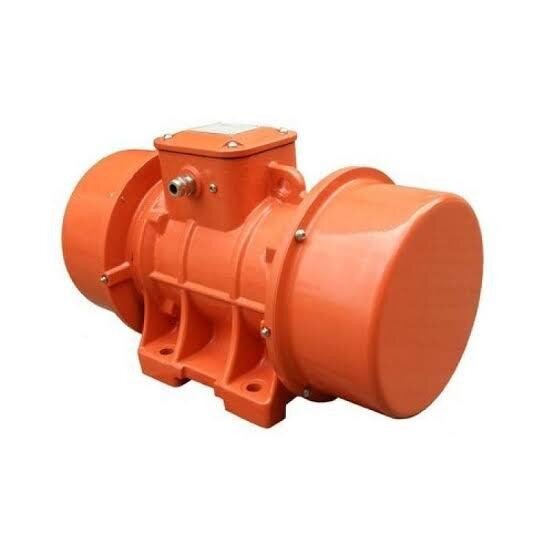

DRG Vibration Motors
DRG vibration motors convert rotation into vibration force through adjustable eccentric weights on the shaft ends, designed for industrial vibration applications. For crusher screens, silo/hopper discharge, concrete compaction and mining lines, they feature a cast iron body and IP65 protection, available from stock.
General Technical Specifications
| Feature | Value / Description |
|---|---|
| Power range | 0.12 – 15 kW |
| Speed | 750 / 1000 / 1500 / 3000 rpm |
| Centrifugal force | 200 – 20,000 kgf |
| Eccentric adjustment | Stepped (manual) – vibration force 10% – 100% |
| Voltage | 230 / 400 V – 50 Hz |
| Efficiency class | IE3 / IE4 |
| Winding | 100% pure copper |
| Frame material | Cast iron |
| Insulation | Class F |
| Protection | IP65 |
| Duty type | S1 (continuous) |
Structural Features
- Body: cast iron – resistant to heavy mechanical loads
- Bearing system: high-impact FAG / C&U / NSK bearings
- Axial balance: optimised with double bearing support
- Eccentric weights: adjustable vibration force (10% – 100%)
- Protection: IP65 against dust and moisture
- Bearing housing: long-life greased design
100% pure copper winding maintains conductivity under high heat and vibration: low energy loss, heat-resistant insulation varnish, long winding life.
Performance Advantages
- Adjustable vibration force (manual)
- Resistant to dust, moisture and impact
- Quiet operation and balanced performance
- Long bearing and winding life
- Easy installation and maintenance
- 24/7 operation (S1 duty)
- Low energy consumption – high vibration efficiency (IE3 / IE4)
Applications
- Crusher and screen systems
- Stone crushing and screening lines
- Silo and hopper discharge systems
- Concrete vibrators and mould compaction systems
- Mining, quarry and aggregate plants
- Food and feed industry dosing systems
Quality Tests (Post-Production)
- Insulation and megger test
- Vibration – balance test
- Eccentric force simulation
- Heating test under load
- Efficiency measurement (η, cos φ)
Our products carry CE, ISO 9001, LVD, EMC and RoHS certificates and are produced to IEC 60034.
Why DRG Vibration Series?
- Immediate delivery from Turkey stock
- 2-year warranty
- Technical support and service
- Spare-part supply
- Dedicated sales and technical support for dealers
Request a Quote
Get a price for the power, speed and vibration force that fit your application:
Quick quote on WhatsApp | +90 542 666 11 11 | Contact & Quote Form
For motors used in crushing and screening systems, see our crusher / stone crushing motors content.
