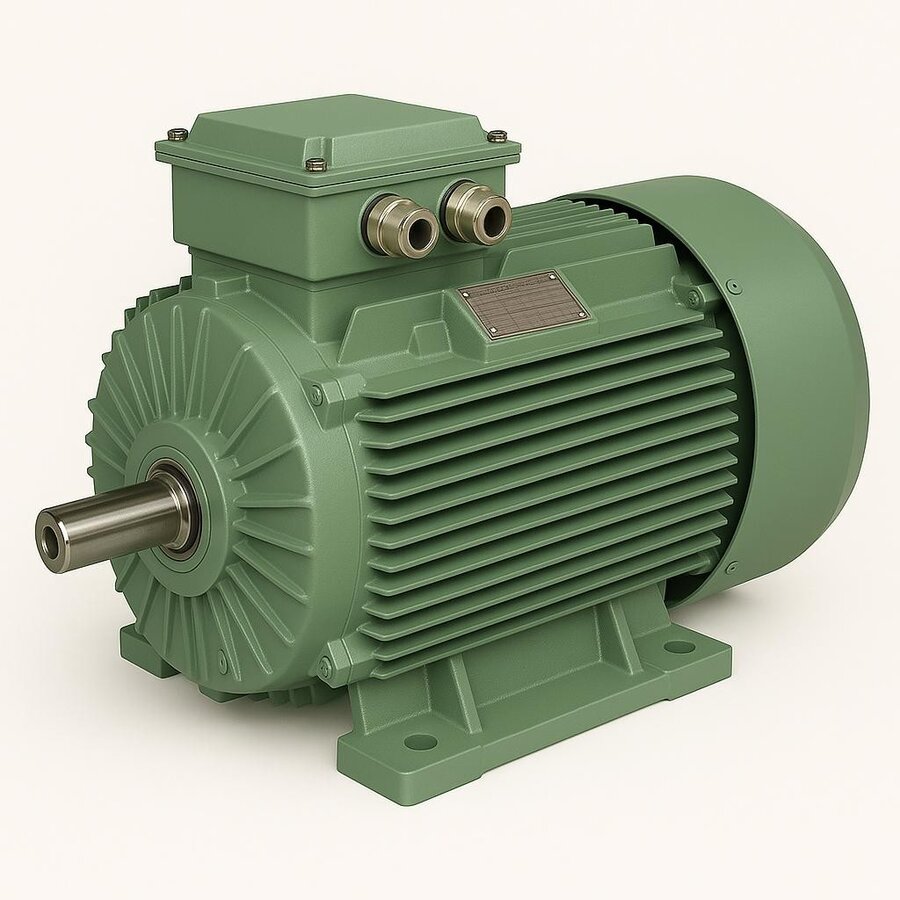

An efficient AC electric motor converts the largest possible share of the electrical energy it draws into mechanical power while keeping losses to a minimum. The efficiency of AC motors is directly tied to winding quality, the steel core and design optimisation.

How Efficiency Is Measured

Motor efficiency is the ratio of mechanical output power to electrical input power. The IEC 60034-30-1 standard classifies this ratio from IE1 to IE5: IE1 Standard, IE2 High, IE3 Premium, IE4 Super Premium and IE5 Ultra Premium. The higher the class, the same work is done with less electricity.

The Source of Losses

Losses in an AC motor consist of copper losses in the windings, iron losses in the steel core, bearing friction and ventilation losses. Efficient motors reduce each of these losses through higher-grade materials and optimised design.

How Efficiency Reaches the Plant

A high-efficiency motor runs cooler and draws less electricity. This lowers the energy bill and, by running cooler, extends the motor's life; the difference becomes most apparent in systems that operate for long hours.

DRG Efficient AC Motors

DRG Motor supplies AC motors from 0.55 to 355 kW in the IE3 and IE4 efficiency classes, with IP55 protection and Class F insulation. Share your application's power, speed and mounting details to request the most efficient solution and a current quotation.
