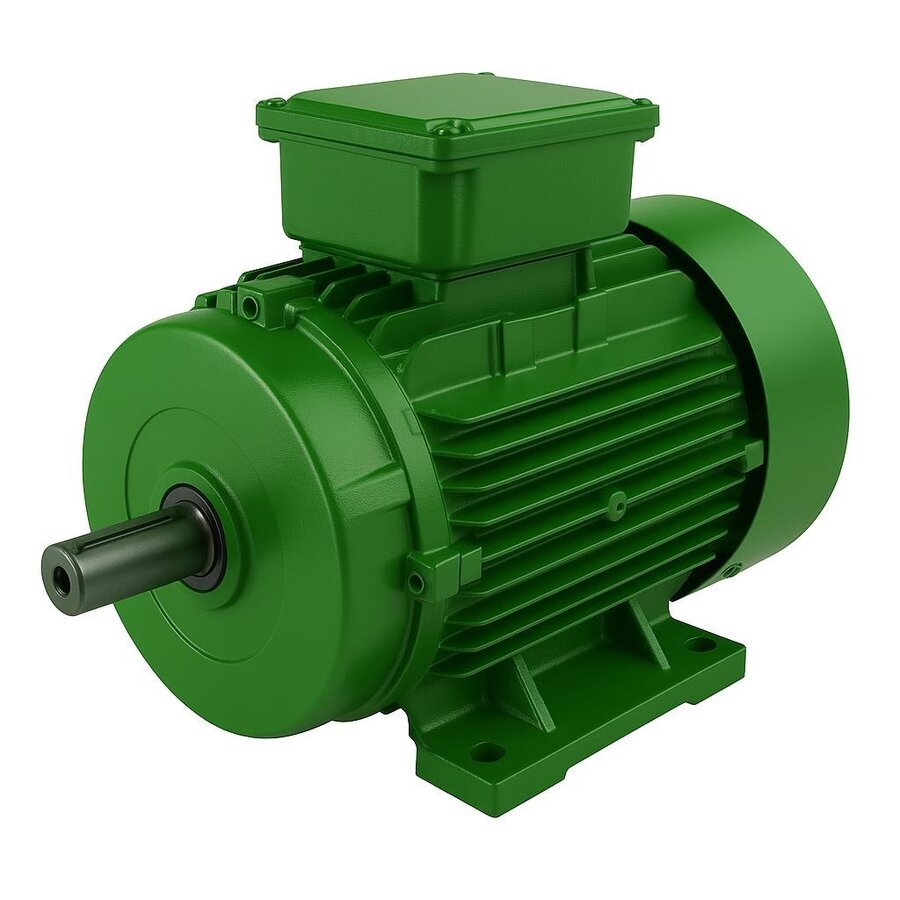

An IE3 electric motor represents the Premium efficiency class under the IEC 60034-30-1 standard and is mandated in many countries as the minimum efficiency level for certain power ranges. Alongside efficiency, the quality of the windings, bearings and frame determines the reliability these motors show in the field.

What the IE3 Efficiency Class Means

Efficiency classes run IE1 Standard, IE2 High, IE3 Premium, IE4 Super Premium and IE5 Ultra Premium. By cutting losses compared with IE2, IE3 produces the same mechanical power while drawing less electricity. In continuously running applications such as pumps, fans and compressors, this difference returns as meaningful electricity savings over the year.

The Details That Define Quality

An efficiency class alone is not enough; copper winding quality, well-chosen bearings, Class F insulation and a balanced rotor directly affect a motor's lifespan. IP55 protection guards against dust and splashing water, while a cast iron frame improves mechanical strength and heat dissipation. These details form the real durability behind the IE3 label.

Which Applications?

IE3 motors are widely used in conveyors, pumps, fans, compressors, mixers and general drive applications. On a 50 Hz supply, a 4-pole model runs at 1500 rpm, a 2-pole at 3000 rpm and a 6-pole at 1000 rpm; the speed band an application requires is reached through the correct pole choice.

Choosing the Right IE3 Motor

DRG Motor offers a broad range of IE3 three-phase motors from 0.55 to 355 kW at 400 V / 50 Hz. Once power, speed, mounting type (B3 foot / B5 flange / B14 face) and operating environment are known, the most suitable model is identified; thanks to Izmir-based manufacturing, supply and technical support move quickly.
