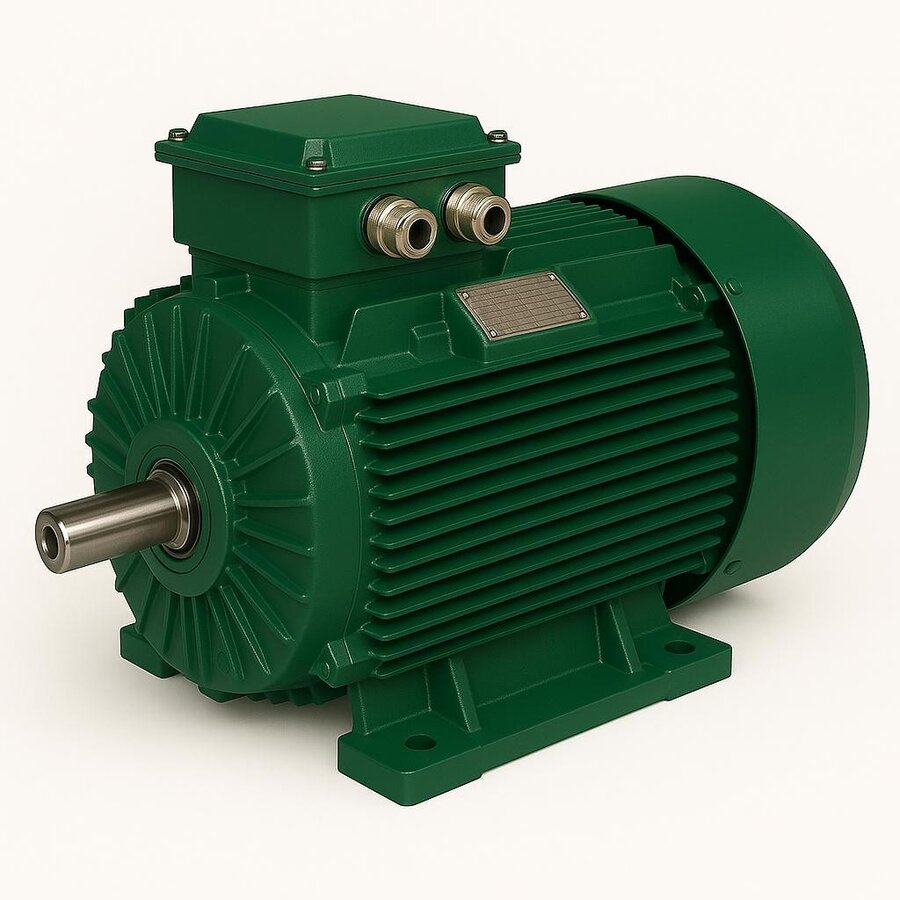

An IE3 electric motor corresponds to the "Premium Efficiency" class defined in IEC 60034-30-1 and runs with noticeably lower losses than an IE1 standard motor of the same rating. DRG Motor supplies IE3 three-phase induction motors across the 0.55–355 kW range.

The Design Behind the IE3 Class

IE3 efficiency comes from more copper winding, optimized stator-rotor geometry and a low-loss silicon steel core. Less energy is turned into heat at the same output, so the motor runs cooler and the life of the Class F insulation is extended. Standard protection is IP55, suited to dusty and humid environments.

Pole Count and Speed Options

On a 400 V / 50 Hz supply the synchronous speed depends on pole count: 2 poles 3000 rpm, 4 poles 1500 rpm, 6 poles 1000 rpm. The DRG Motor IE3 series covers all three; 2-4 poles are common for pumps and fans, 4-6 poles for conveyors and mixers.

Frame and Mounting Types

IE3 motors are available with cast iron or aluminium frames in B3 foot-mounted, B5 flange-mounted and B14 face-mounted versions. For continuous, vibration-heavy duty, the cast iron frame improves mechanical strength and heat dissipation.

Choosing the Right IE3 Motor

The point of moving to IE3 is cutting energy loss on motors that run all day under S1 duty. Once load, speed and mounting are clear, DRG Motor evaluates the suitable IE3 model and, where it pays off, an upgrade to IE4.
