75 kW 1500 RPM ELECTRIC MOTOR

CONTACT: +90 542 666 11 11

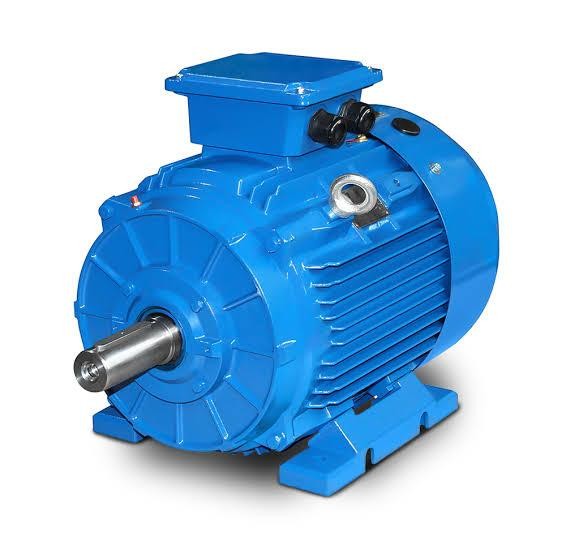

The 75 kW 1500 RPM electric motor from DRG Motor is built to deliver high torque, excellent efficiency, and reliable continuous operation in demanding industrial environments. Designed for heavy-duty systems, this motor is commonly used in crushers, mixers, industrial fans, conveyors, compressors, and processing lines across sectors like energy, mining, cement, petrochemicals, and automation.

With a rated power of 75 kilowatts (approx. 100 HP) and an operational speed of 1500 revolutions per minute, this motor provides stable performance, low vibration, and quiet operation. Built for S1 duty cycle, it’s capable of uninterrupted, long-term use even under full load.

The housing can be selected as:

  • Cast iron – for rugged industrial durability

  • Aluminum – for lighter installation needs

It is supplied with IP55 protection class as standard, with IP65 options available for harsh operating environments.

Key Features:

  • High-conductivity copper windings – for efficient performance

  • Class F insulation system – for thermal endurance

  • Dynamically balanced rotor – for smooth and silent operation

  • Sealed, maintenance-free bearings – for long service life

The motor is manufactured in IE2 efficiency class by default, while IE3 high-efficiency versions are available for facilities focused on reducing energy costs.

Mounting Options:

  • B3 (foot-mounted)

  • B5 (flange-mounted)

  • B14 (small flange-mounted)

Shaft dimensions, flange sizes, and terminal box orientation can be customized based on specific machine requirements. Fully compatible with Variable Frequency Drives (VFDs) for precise control over speed and torque.

Optional Accessories:

  • PTC thermistors / PT100 sensors

  • Incremental or absolute encoders

  • Electromagnetic brakes

  • Automatic lubrication systems

Thanks to its modular structure, the motor is easy to maintain, reducing downtime and improving overall productivity in critical systems.

In conclusion, the 75 kW 1500 RPM electric motor from DRG Motor is an outstanding choice for companies seeking power, durability, and energy efficiency in industrial motor applications.

You can purchase this and all other motors from DRG Motor.
